AIRMAR

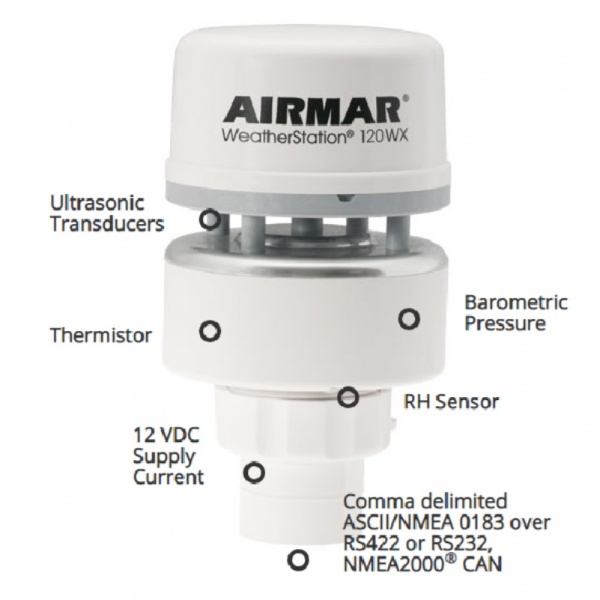

Weather Station AIRMAR 120WX NMEA 0183 / 2000 - (No Relative Humidity)


Código (SKU): WS-120WX

Los equipos weather station de AIRMAR diseñados específicamente para aplicaciones marinas, destacan en este mercado: Pesca profesional y deportiva, cruceros y veleros de regata. Los instrumentos de la estación meteorológica de la serie WX ofrecen información meteorológica en tiempo real: datos de viento reales y aparentes, GPS, Hora, Rumbo (Compas de tres ejes), cabeceo y balanceo, hasta 10 Hz de velocidad de datos, relación de giro, nmea0183, nmea2000, IP67.

No incluye cable


Cotizar Preguntar por WhatsApp
Air Temp Accuracy: ±1.1°C at 20°C
Air Temp Range: -40 to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Apparent Wind Speed Angle: Yes
Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
Barometric Pressure Range: 300 to 1100 hPa
Barometric Pressure Resolution: 0.1 hPa
Certs And Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Communications Available Hardware Interface: Serial RS-232, Serial RS-422, CAN
Communications Available Protocol: Comma delimited ASCII, NMEA 0183, NMEA 2000
Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
Mobile: Yes
Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
NMEA 2000 LEN: 2
Note: Cables sold separately
Operating Temp Range: -25 to 55°C (-13 to 131°F)
Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
Optional RH Range: 0 to 100% RH
Optional RH Resolution: 0.1% RH
Power Supply Current: <55 mA (<0.7 W) at 12 VDC
Power Supply Voltage: 9 to 40 VDC
Recommend Use: Marine, Stationary, Mobile
Stationary: Yes
Waterproof Rating: IPX6 (Relative Humidity/IPX4)
Weight: 275 g (0.6 lb.)
Wind Direction Accuracy: ±3° at 10 m/s
Wind Direction Calculations: User configurable damping
Wind Direction Range: 0° to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 5% at 10 m/s at 4 angles
Wind Speed Calculations: User configurable damping
Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1 m/s
